1
$3.0906
$3.0906
10
$2.3129
$23.1290
25
$2.0604
$51.5100
50
$1.9594
$97.9700
100
$1.9089
$190.8900
500
$1.5958
$797.9000
1000
$1.4948
$1,494.8000
2500
$1.4443
$3,610.7500
5000
$1.3938
$6,969.0000
| TYPE | DESCRIPTION |
| Mfr | UMW |
| Series | LM2594HV |
| Package | Tape & Reel (TR) |
| Product Status | ACTIVE |

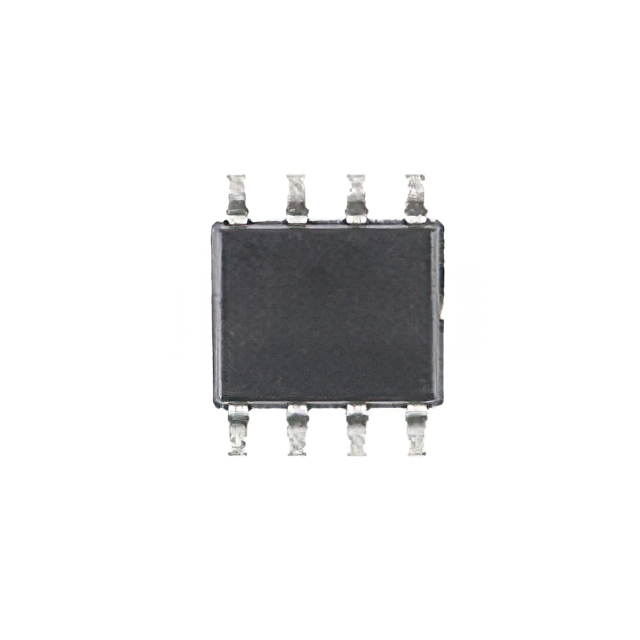

| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Function | Step-Down |
| Current - Output | 1.5A |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 150kHz |
| Voltage - Input (Max) | 40V |
| Topology | Buck |
| Supplier Device Package | 8-SOP |
| Synchronous Rectifier | No |
| Voltage - Output (Max) | 37V |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output (Min/Fixed) | 1.23V |
